Case Study: Drip Edge Machine for Orlando
A local roofer needed a drip edge line. This one was in stock and commissioned quickly.
Roll Forming Machines LLC was contacted by a customer based in Orlando Florida who manufactures metal roofing. They sent over the profile they desired. We had the the machine in stock at our factory in Florida it was delivered and set up within 2 weeks by our team of roll forming engineers, each with many years of experience in setting up and running roll forming equipment,

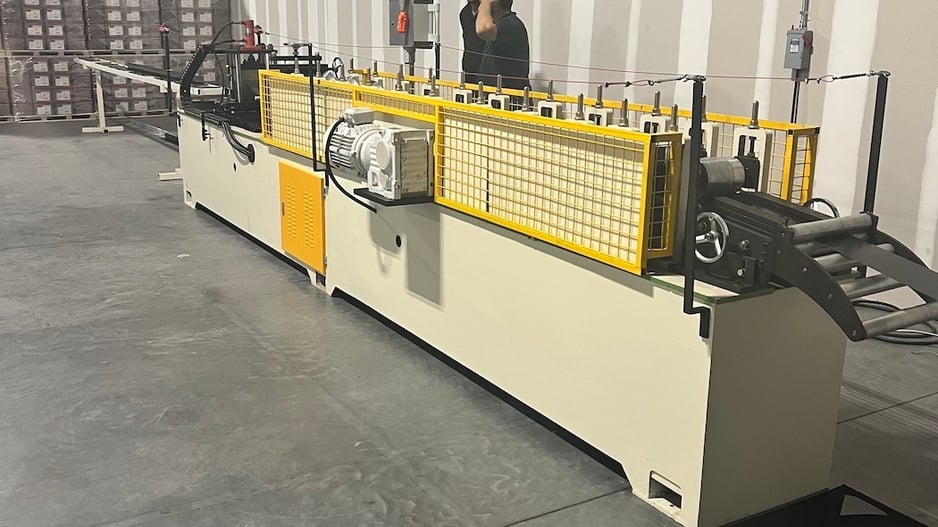

The drip edge roll forming machines footprint was 18ft x 3 x 5ft and weighed 6000lbs, the forming speed was 80ft per minute, and featured 20 stations. Cutting type was flying shear, and for safety, it includes e-stop and safety covers. The machine's main power is 240v - 3ph - 60Hz with an 8Hp motor and its chain drive, the control panel was Delta.
Profile was 2-1/2" face and 3" face, Horizontal is adjustable max 4"
