Case Study: Drip Edge Machine for New Orleans
A New Orleans metal roofer sent us their profile. The drip edge line we built from it.
Roll Forming Machines LLC was contacted by a customer based in New Orleans who manufactures metal roofing. They sent over the profile they desired, and once they had approved the details, we began the manufacturing. We had the machine completed in our factory in Florida and sent to New Orleans within only 7 weeks.
When the machine was made and delivered, our team of roll forming engineers, each with many years of experience in setting up and running roll forming equipment, went to their factory to install and set up the machine.

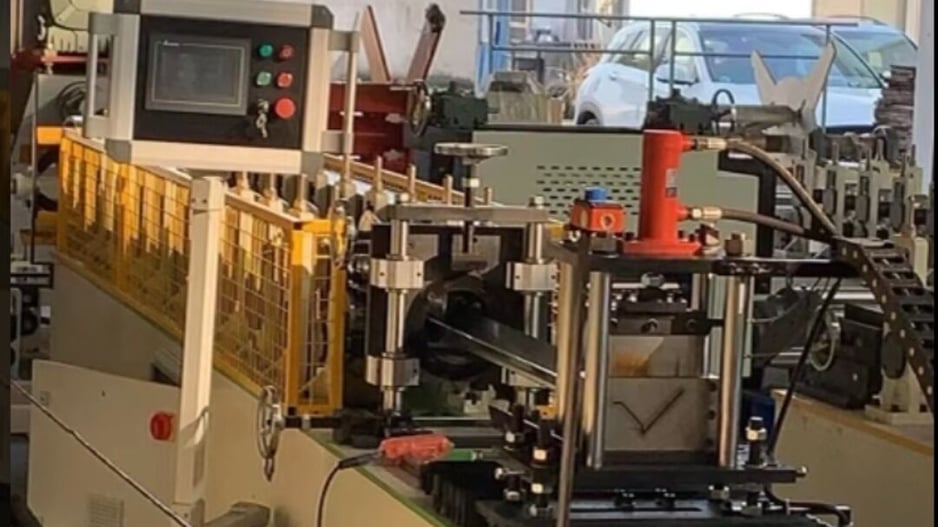

The drip edge roll forming machines footprint was 18ft x 3 x 5ft and weighed 6000lbs, the forming speed was 80ft per minute, and featured 20 stations. Cutting type was flying shear, and for safety, it includes e-stop and safety covers. The machine's main power is 240v - 3ph - 60Hz with an 8Hp motor and its chain drive, the control panel was Delta.
Profile was 2-1/2" face and 3" face, Horizontal is adjustable max 4"
