Metal Purlin Roll Forming Machines

...

Metal Purlin Roll Forming Machines

Roll Forming Machines LLC supplies a variety of metal purlin roll forming machines for structural, commercial, industrial, and agricultural applications. We offer machines that produce standard profiles like C & Z purlins, as well as fully custom profiles based on your specific needs — including adjustable and interchangeable systems for varying widths, heights, and gauges.

All machines include a one-year parts and labor warranty and are shipped from our Orlando, Florida facility, where we maintain stocked machines for quick delivery. You’re welcome to visit our Orlando site to view machines in person and discuss your production requirements with our team.

For more details or to arrange a visit, please contact us at [email protected] or (+1) 407-859-1119. We look forward to assisting you.

Machine Specifications

  • Production Speed: Standard: 50 - 60ft feet per minute
  • Roll Stations: 21 stations (based on profile complexity)
  • Machine weight: 15 ton
  • Machine size: Based on standard machine 60ft x 12ft
  • Drive System: Gearbox-driven
  • Cutting System: Hydraulic or flying shear
  • Control System: PLC control with touch screen Programmable length and batch quantity
  • Power Supply: Typically 240V / 3-phase, 60Hz
  • Motor Power: 32Hp - 480v - 3ph
  • Profile - 5" to 12"
  • Coil Width - Variable
  • Material thickness - Variable
  • Machine Frame: Heavy-duty steel frame, welded construction
  • Roller Material: High-grade steel (GCr15), hardened and chrome-coated
  • Length Tolerance: ±1.5 mm
  • Safety Features: Emergency stop buttons, Protective covers
  • Warranty: 12 months parts and labor

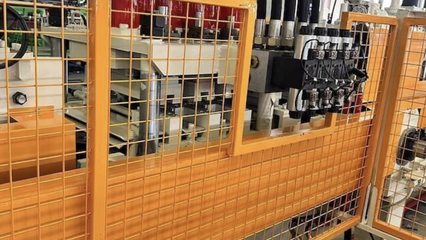

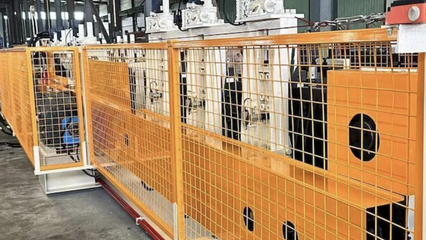

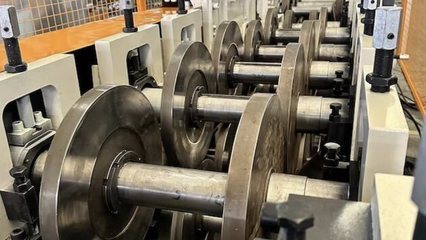

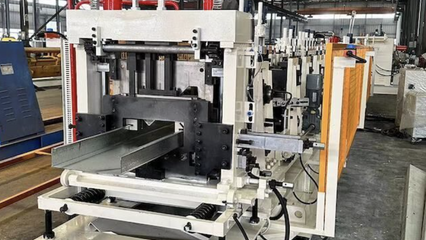

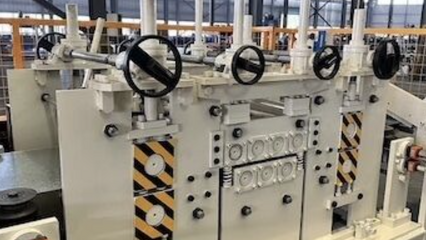

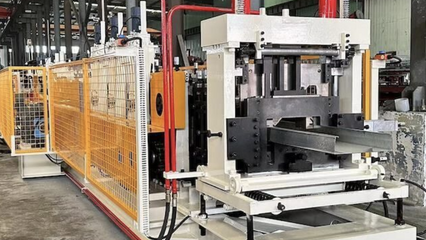

Screenshot 2025 06 25 at 10 08 49 Screenshot 2025 06 25 at 10 54 16 Screenshot 2025 06 25 at 10 57 00 Screenshot 2025 06 25 at 10 57 24 Screenshot 2025 06 25 at 10 58 47 Screenshot 2025 06 25 at 10 59 07
