Metal Deck Roll Forming Machines

Roll Forming Machines LLC supplies a wide range of metal deck roll forming machines designed for roofing, flooring, concrete formwork, and structural decking applications. We offer equipment capable of producing standard profiles such as Roof Deck, Composite Floor Deck, and Form Deck, as well as fully custom profiles tailored to your specific project needs.

Machines are available in both fixed-base and cassette-type configurations, providing flexibility for single-profile or multi-profile production environments.

All machines come with a one-year warranty covering parts and labor, and are shipped directly from our Orlando, Florida facility, where we maintain stock for fast delivery. You’re welcome to visit our Orlando location to view machines in person and discuss your production requirements with our team.

For more details or to arrange a visit, please contact us at [email protected] or (+1) (407) 859 1119. We look forward to assisting you.

Machine Specifications

  • Production Speed: 60ft Plus
  • Roll Stations: 28 stations (based on profile complexity)
  • Base: Fixed and Cassette type
  • Machine weight: 20 ton
  • Machine size: 85ft - 120ft x 15ft
  • Coil width: 48" +/-
  • Material thickness: 18g - 24g

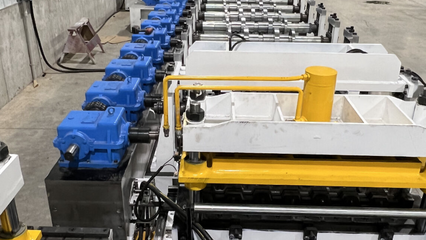

  • Drive System: Gearbox-driven
  • Cutting System: Hydraulic or flying shear
  • Control System: PLC control with touch screen Programmable length and batch quantity
  • Power Supply: Typically 480v - 3ph - 60Hz
  • Motor Power: 65hp 3ph 60hz
  • Machine Frame: Heavy-duty steel frame, welded construction

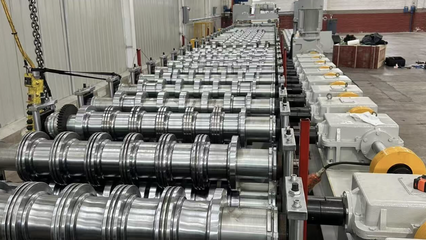

  • Roller Material: High-grade steel (GCr15), hardened and chrome-coated
  • Length Tolerance: ±1.5 mm
  • Embosser: On and off embossing rollers

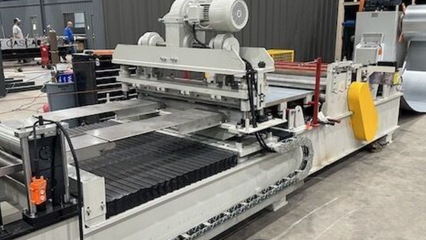

  • Optional Features: Auto Stacker
  • Uncoiler: Hydraulic uncoiler
  • Safety Features: Emergency stop buttons, Protective covers
  • Warranty: 12 months parts and labor

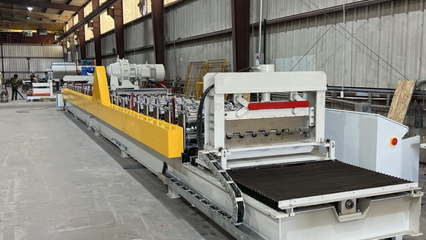

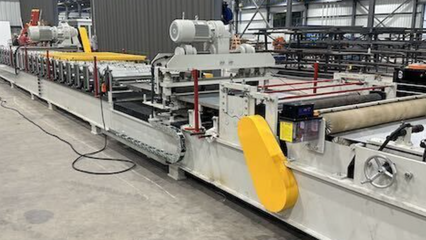

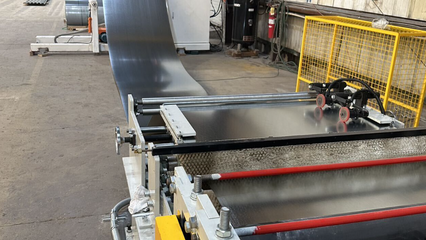

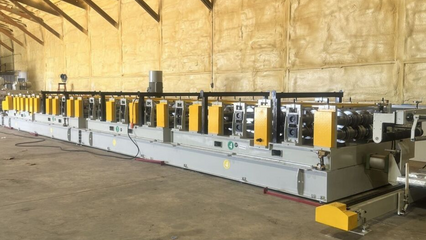

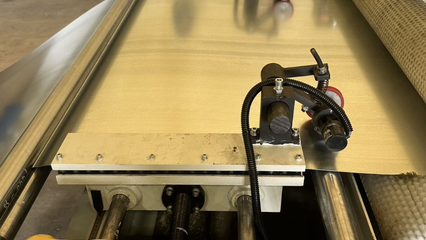

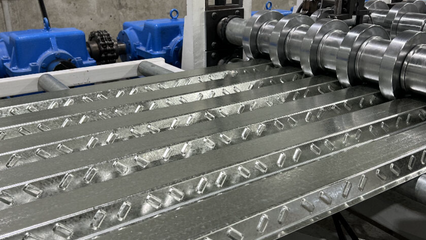

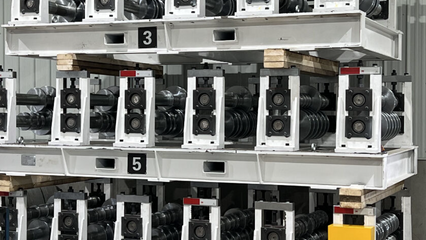

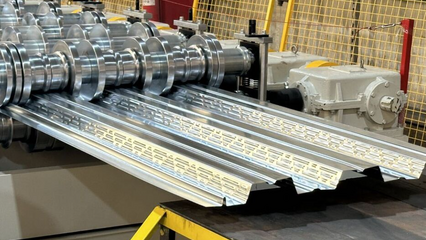

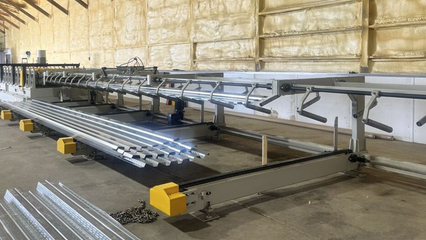

Screenshot 2025 06 25 at 09 51 25 Screenshot 2025 06 25 at 09 54 38 Screenshot 2025 06 25 at 09 56 57 Screenshot 2025 06 25 at 09 54 07 Screenshot 2025 06 25 at 09 52 56 Screenshot 2025 06 25 at 09 57 41 Screenshot 2025 06 25 at 09 53 27 Screenshot 2025 06 25 at 09 55 30 Screenshot 2025 06 25 at 09 58 30 Screenshot 2025 06 25 at 09 58 56 Screenshot 2025 06 25 at 09 59 49 Screenshot 2025 06 25 at 10 01 34
