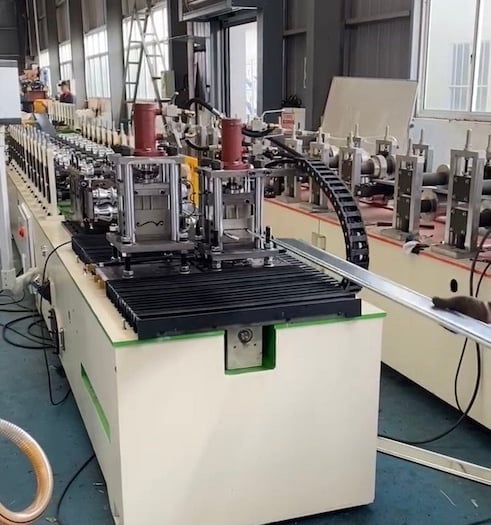

Multi Trim Roll Forming Machine

Roll Forming Machine LLC multi profile side by side roll forming machines can produce many different profiles including corner, j- channel, drip edge, angle trim, and more.

For more information please contact us with your profile

Machine Description

A multi-trim roll forming machine is a specialized piece of equipment used in the manufacturing and construction industry to create various shapes and profiles from sheet metal or other materials. Roll forming is a continuous bending operation in which a long strip of material is passed through a series of rollers to gradually shape it into a desired cross-sectional profile.

The term "multi-trim" suggests that this particular roll forming machine has the capability to produce multiple different profiles or shapes in a single pass or run. This can be achieved by having multiple sets of rollers or tooling stations arranged along the length of the machine. Each set of rollers or stations is responsible for shaping the material into a specific profile.

Here are some key features and components typically associated with a multi-trim roll forming machine:

1. Rollers: The heart of the roll forming machine is a series of rollers that gradually bend and shape the material. Each set of rollers is designed to create a specific part of the final profile.
2. Tooling: Different profiles require different sets of tooling, which can include various types of dies, punches, and forming rolls. The multi-trim machine may have quick-change capabilities to switch between different tooling setups.
3. Material Feed System: A continuous strip of material, usually in the form of a coil, is fed into the machine. The material feed system ensures a consistent and smooth flow of material through the rollers.
4. Drive System: Roll forming machines are equipped with a powerful drive system to move the material through the rollers and control the speed and tension during the forming process.
5. Cut-off Mechanism: Multi-trim machines often include a cut-off mechanism that can be programmed to cut the formed material into specific lengths or pieces as it exits the machine.
6. Control System: Advanced roll forming machines come with a computerized control system that allows operators to set parameters, monitor the process, and make adjustments as needed.

Applications of multi-trim roll forming machines can vary widely, from producing components for the automotive industry, building and construction materials such as roofing and siding panels, to manufacturing custom profiles for various industries. These machines are valued for their efficiency, precision, and the ability to produce consistent and high-quality profiles.

The specific capabilities and features of a multi-trim roll forming machine can vary depending on the manufacturer and the intended use, so it's important to consult the machine's documentation or the manufacturer's specifications for detailed information on a particular machine's capabilities and limitations.
