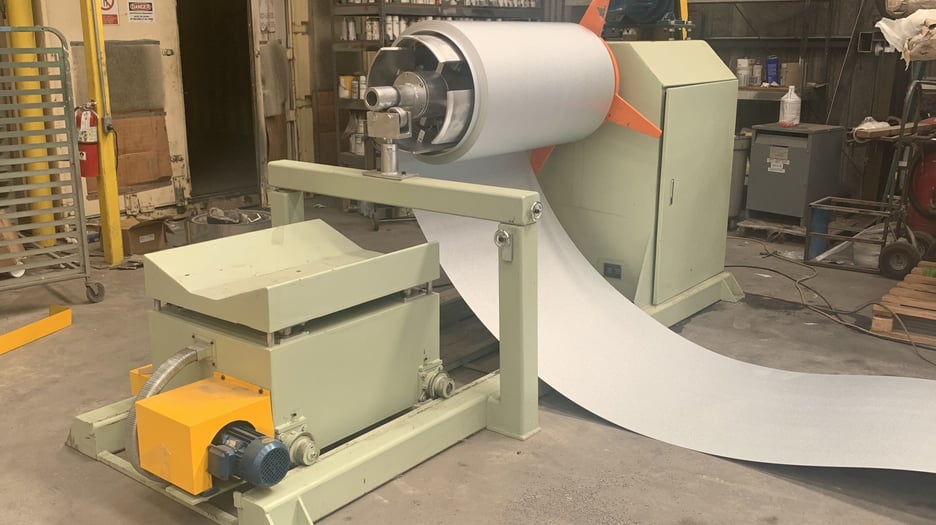

Hydraulic Decoiler With Car

Hydraulic Decoiler With Car Specifications

Hydraulic Decoiler With Car machine is used for unrolling the steel coils and always works with roll forming machines.

• Production capacity
• Max coil weight 10,000lb
• Hydraulic Decoiler dimensions 17′ x 6′ x 7′
• Speed feed
• Machine weight 7 ton

Hydraulic Decoiler With Car Description

A hydraulic decoiler with a car, also known as a hydraulic coil decoiler with a coil car, is a piece of equipment commonly used in metal processing and manufacturing industries. It is primarily used for handling and uncoiling large metal coils, such as steel or aluminum, which are often used as raw materials for various manufacturing processes. The combination of a hydraulic decoiler and a coil car makes the process of loading, unloading, and feeding coils into a production line more efficient and safer.

Here's a breakdown of the key components and functions of a hydraulic decoiler with a car:

1. Hydraulic Decoiler: The hydraulic decoiler is the core component of the system. It consists of a robust frame and a hydraulic system that allows it to securely hold and uncoil large metal coils. The hydraulic system provides the necessary force to expand the mandrel or arbor that holds the coil's inner diameter. This expansion grips the coil securely to prevent it from unwinding prematurely during processing.
2. Coil Car: The coil car is a mobile platform equipped with wheels or rollers, allowing it to move horizontally along the factory floor. Its primary function is to transport metal coils from storage or staging areas to the hydraulic decoiler and position them accurately for loading onto the decoiler's mandrel. This eliminates the need for manual lifting and transporting of heavy coils, improving safety and efficiency.
3. Control System: The hydraulic decoiler and coil car are typically operated through a control panel. Operators can use this panel to adjust the decoiler's hydraulic settings, control the movement of the coil car, and ensure that the coil is loaded onto the decoiler correctly.
4. Safety Features: Safety is a crucial consideration when working with heavy metal coils. Hydraulic decoilers with cars are often equipped with safety features such as emergency stop buttons, sensors to detect coil placement and alignment, and interlocks to prevent accidents during operation.

The typical workflow of using a hydraulic decoiler with a car involves the following steps:

1. The coil car is positioned near the storage area where the metal coil is located.
2. The coil is loaded onto the coil car using a crane or forklift.
3. The coil car transports the coil to the hydraulic decoiler.
4. The coil is positioned over the decoiler's mandrel.
5. The hydraulic decoiler's mandrel is expanded to securely grip the inner diameter of the coil.
6. The hydraulic decoiler begins uncoiling the metal coil as needed for the manufacturing process downstream.
7. Once the coil is completely uncoiled, the empty coil holder is released, and the coil car can transport the empty holder away for reloading with a new coil.

By automating the process of handling and uncoiling metal coils, hydraulic decoilers with cars help improve the efficiency of metal processing operations, reduce labor requirements, and enhance workplace safety. These machines are commonly used in industries such as automotive manufacturing, steel production, and metal fabrication.

The Hydraulic Decoiler With Car machine is also used in conjunction with the majority of our roll forming machines. Please view all our roll forming machines.

FAQs

What is Hydraulic Decoiler with Car machine?

A hydraulic decoiler feeds a metal coil into a metal roll forming machine.

What materials can I use with a Hydraulic Decoiler with Car machine?

Galvalume, Steel Aluminum.

How is my Hydraulic Decoiler machine delivered?

Palleted.

Can I customize my Hydraulic Decoiler with Car machine?

Yes, your Hydraulic Decoiler With Car machine can be customized.
