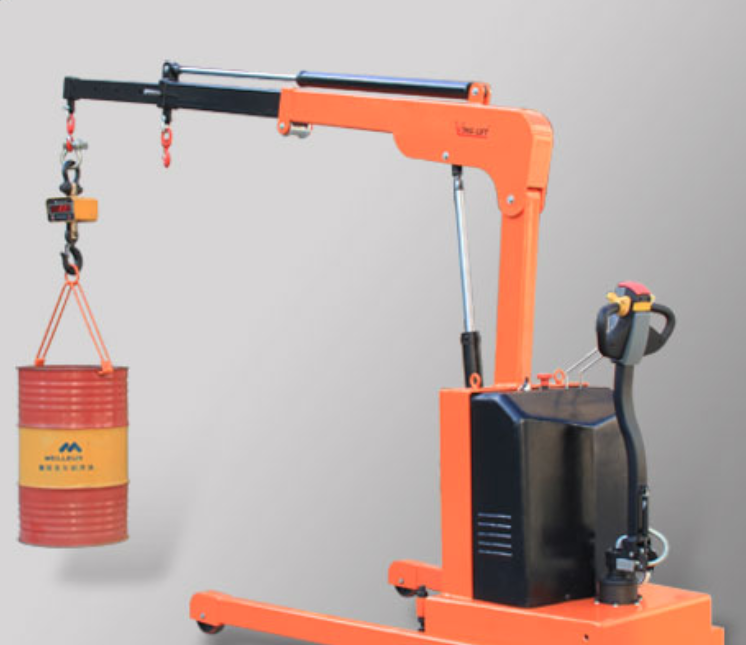

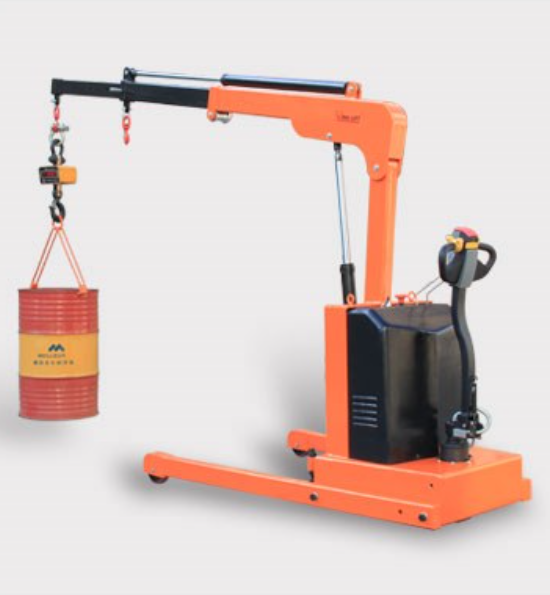

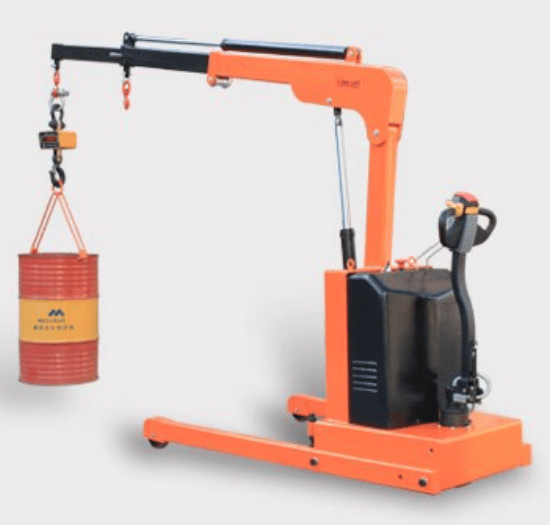

Electric Single Shop Crane
Get a Quote
Send us a message and we’ll get back to you shortly.
Capacity 200 - 1000kg
Hoist foldable and easy to transport and store
Wide range of lifting angles, adjustable telescopic long arm;
Suitable for areas where the forklift can’t enter to operate, foldable legs, small package volume, convenient for transportation.
The length of the telescopic boom can be adjusted according to the working conditions.
High-power walking drive wheel;
Joint venture hydraulic pump station, lasting power of Valta free maintenance battery ;
High-quality cylinder, heavy-duty design, easy to adjust the arm distance through the cylinder;
With safety valve, foldable design and small package size;
Suitable for areas where the forklift can’t enter to operate.

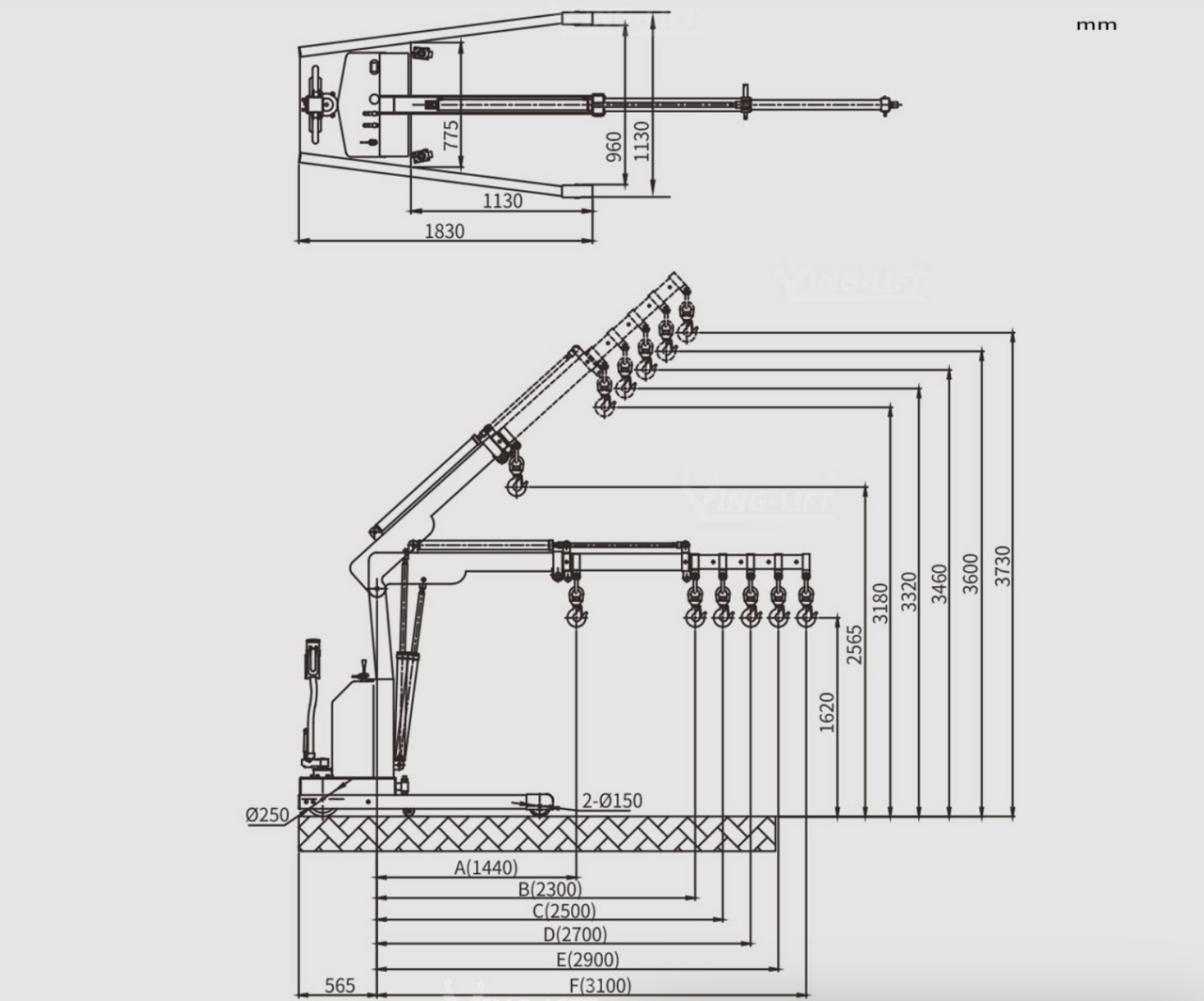

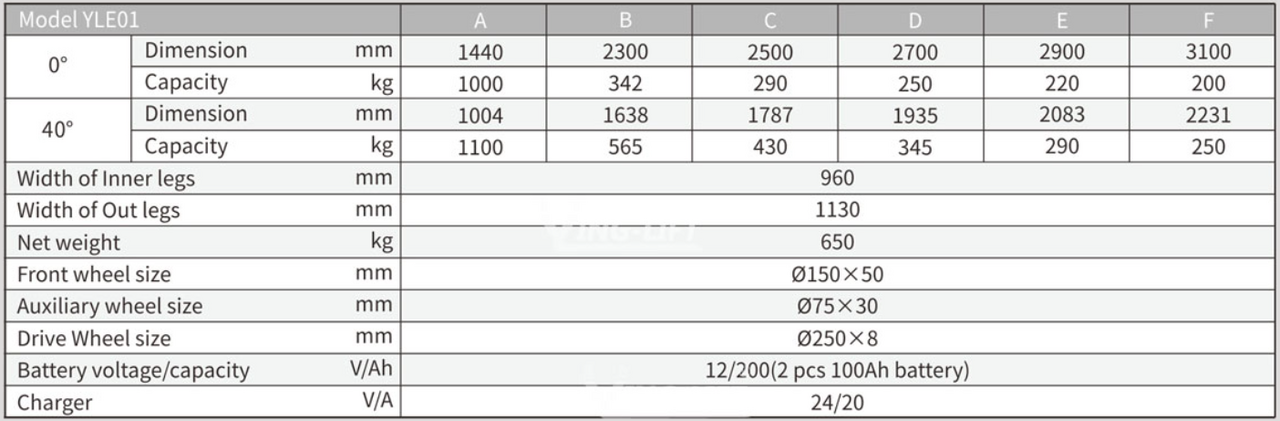

| Model YLE01 | A | B | C | D | E | F | ||
| 0 | Dimension | mm | 1440 | 2300 | 2500 | 2700 | 2900 | 3100 |
| Capacity | kg | 1000 | 342 | 290 | 250 | 220 | 200 | |
| 40 | Dimension | mm | 1004 | 1638 | 1787 | 1935 | 2083 | 2231 |
| Capacity | kg | 1100 | 565 | 430 | 345 | 290 | 250 | |
| Width of Inner legs | mm | 960 | ||||||
| Width of Out legs | mm | 1130 | ||||||
| Net weight | kg | 568 | 568 | 568 | 568 | 568 | 568 | |
| Front wheel size | mm | Ø150×50 | Ø150×50 | Ø150×50 | Ø150×50 | Ø150×50 | Ø150×50 | |
| Auxiliary wheel size | mm | Ø75×30 | Ø75×30 | Ø75×30 | Ø75×30 | Ø75×30 | Ø75×30 | |
| Drive Wheel size | mm | Ø250×80 | Ø250×80 | Ø250×80 | Ø250×80 | Ø250×80 | Ø250×80 | |
