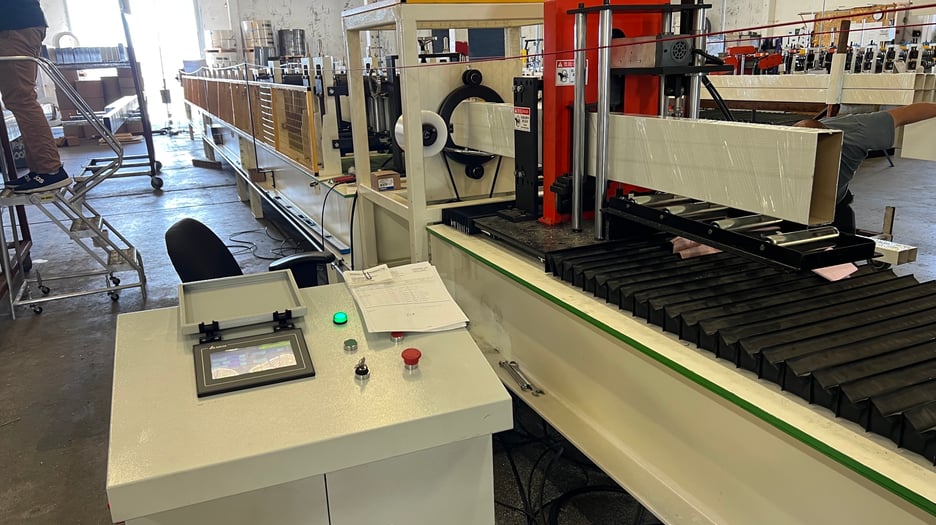

Aluminum Patio Beam Machine

Aluminum Patio Beam Roll Forming Machine Specifications

• Designed and manufactured for 3x8" Aluminum joist profile for Patio and Pergola industry
• Profile: Joist - Beam
• Coil Width: 24"
• Forming Speed: 70" per min
• Material thickness: 0.32 to 0.40
• Machine Weight: 10 ton
• Machine Footprint: 54ft
• Main power: 240v - 3ph - 60Hz
• Motor: 8Hp
• Gearbox: Chain drive
• Stations: 26
• Cutting type: Flying saw
• Control system: Delta
• Safety covers: yes
• E Stops
• FOB Orlando, Florida

Aluminum Patio Beam Roll Forming Machine Description

An aluminum patio beam roll forming machine is a piece of industrial equipment used in the manufacturing process of aluminum patio beams. Aluminum patio beams are structural components used in the construction of outdoor patio covers, pergolas, and similar structures. These beams are typically made from aluminum because of its lightweight, corrosion-resistant properties, and durability.

The roll forming process is a manufacturing method used to shape metal sheets or strips into specific profiles by passing them through a series of rollers. A roll forming machine for aluminum patio beams is designed to take flat aluminum sheet or coil stock and gradually bend it into the desired beam profile. This process typically involves multiple sets of rollers, each with a slightly different shape to incrementally form the beam profile.

Here are some key features and components of an aluminum patio beam roll forming machine:

1. Entry Section: This is where the flat aluminum sheet or coil is loaded into the machine. It may include a decoiler to unwind coil stock.
2. Rollers: The heart of the machine is a series of rollers that gradually shape the aluminum into the desired beam profile. These rollers are designed to bend the metal without causing it to crack or deform.
3. Cutting Mechanism: Some roll forming machines may include a cutting mechanism to cut the aluminum beam to the desired length as it is formed.
4. Control System: Modern roll forming machines are equipped with computerized control systems that allow operators to set parameters such as the desired beam dimensions and production speed.
5. Conveyor System: A conveyor system is often used to move the formed aluminum beams away from the machine for further processing or packaging.
6. Safety Features: Roll forming machines are equipped with safety features to protect operators and prevent accidents during operation.

Aluminum patio beam roll forming machines come in various sizes and configurations, depending on the specific requirements of the manufacturer. They can produce a wide range of beam profiles, including various shapes and sizes to suit different patio cover designs.

Manufacturers typically use roll forming machines to produce aluminum patio beams in a cost-effective and efficient manner, ensuring consistent quality and precise dimensions for their products. These beams are then used by construction companies and homeowners for building outdoor living spaces.

All roll forming machinery is fully assembled at our factory in Orlando Florida. Our Roll Forming Machines come with a 1 year warranty for parts and labor. All machines will be made to customer personal requirements and profile.

Please note: Roll Forming Machines LLC does not provide in-house financing, but the leasing companies listed here can assist with financing our equipment. Roll Forming Machines LLC is not affiliated with any of these companies. To request a quote or If you have any questions about our machines, please fill out the contact form below.
