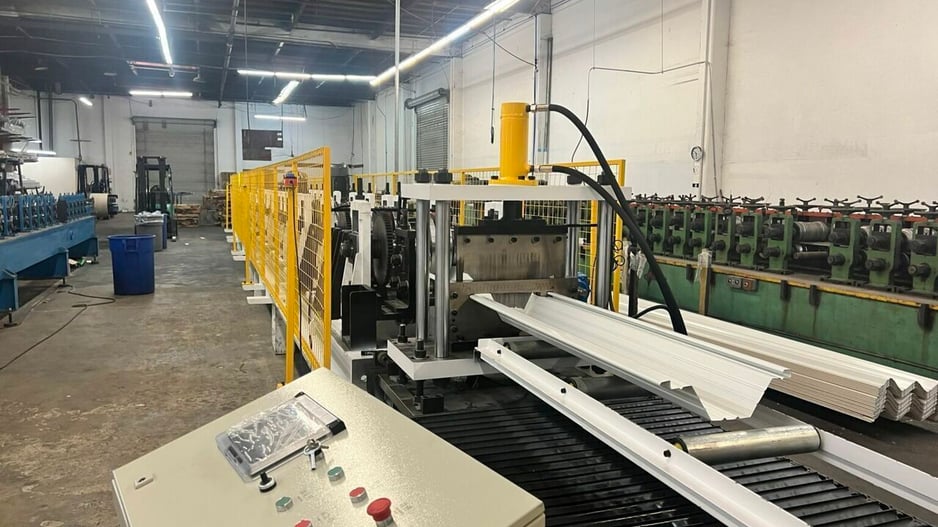

Roll forming machines are used in the manufacturing industry to shape sheet metal or coils into specific profiles or shapes by passing them through a series of rollers. The specifications of a roll forming machine can vary widely depending on the specific application and requirements, but here are some common specifications and features you might find in a typical roll forming machine:
- Material Thickness: Roll forming machines are designed to handle a range of material thicknesses, from thin gauges (e.g., 0.010 inches) to thicker materials (e.g., 0.250 inches or more).
- Material Width: The maximum width of the sheet metal or coil that the machine can accommodate is an important specification. Roll forming machines can handle various widths depending on their design.
- Roll Tooling: Roll forming machines consist of multiple pairs of rollers that gradually shape the material into the desired profile. The design and configuration of the roll tooling depend on the specific profile being formed. Custom roll tooling is often required for different profiles.
- Number of Stations: Roll forming machines consist of multiple stations or sets of rollers, each performing a specific bending or forming operation. The number of stations can vary depending on the complexity of the profile being produced.
- Line Speed: The speed at which the material is fed through the machine is an important specification. Line speed can vary depending on the material and profile requirements.
- Drive System: Roll forming machines typically use electric motors and drive systems to power the rollers. The type and power of the drive system can vary based on the machine's size and capacity.
- Roll Forming Process: Roll forming machines can operate in various configurations, including single-pass or multi-pass systems. Single-pass machines form the entire profile in one pass, while multi-pass machines may require multiple passes to achieve the desired shape.
- Control System: Modern roll forming machines often come with computerized control systems that allow operators to set and adjust parameters such as roll positions, line speed, and material feed.
- Material Handling: Some roll forming machines include material handling systems for loading coils or sheets onto the machine and removing finished products.
- Safety Features: Safety features like guards, emergency stop buttons, and safety interlocks are essential to protect operators and ensure safe operation.
- Tooling Changeover: Depending on the production requirements, the ability to quickly change roll tooling for different profiles can be important for versatility.
- Frame and Construction: The machine's frame and construction should be robust and durable to withstand the stresses of roll forming.
- Optional Features: Depending on the manufacturer and application, roll forming machines may offer additional optional features, such as cut-off systems, hole punching units, and in-line quality control systems.
It's important to note that the specifications of a roll forming machine can vary greatly depending on the manufacturer and the specific requirements of the production process. When purchasing a roll forming machine, it's essential to work closely with the manufacturer to ensure that the machine meets your specific needs and production goals.
