N Deck Roll Forming Machine

Here's an overview of what a typical N Deck Roll Forming Machine does:

Posted on Thursday, November 23, 2023

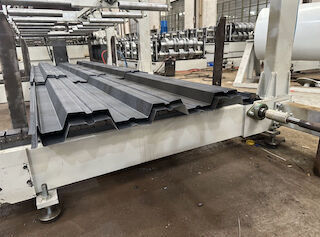

A "N Deck Roll Machine" is a specialized piece of equipment used in the manufacturing and construction industry for producing metal decking panels commonly used in building construction. The term "N Deck" refers to a particular profile or shape of the metal decking panels. These panels are used as a structural component in the construction of floors and roofs in various types of buildings.

Here's an overview of what a typical N Deck Roll Forming Machine does:

  1. Material Feeding: The machine is designed to process coils of metal sheet or steel. These coils are loaded onto the machine's uncoiler, which feeds the material into the roll forming process.
  2. Roll Forming: Roll forming is the primary operation of the machine. The metal sheet is passed through a series of rollers, each with a specific contour. As the sheet passes through these rollers, it is gradually shaped into the desired profile, which, in this case, is the "N Deck" shape. The rollers are carefully designed to bend and form the metal without causing damage or deformation.
  3. Cutting: Once the metal sheet has been roll-formed into the N Deck profile, the machine typically has a cutting mechanism to cut the panels to the desired length. The cutting process may be based on predetermined measurements or controlled by the operator.
  4. Stacking and Collecting: After the panels are cut to size, they are stacked or collected for further processing or packaging.
  5. Optional Features: Some N Deck Roll Forming Machines may come with additional features such as hole punching for fastening or welding flanges to the panels, depending on the specific requirements of the decking panels.

These machines are highly automated and can produce metal decking panels efficiently and with precision. They are commonly used in the construction industry to manufacture decking panels that are then installed as part of the building's structural system. The N Deck profile is just one of many profiles that can be produced using roll forming technology, and the choice of profile depends on the specific requirements of the construction project.

It's important to note that the exact design and features of N Deck Roll Forming Machines can vary from one manufacturer to another, and they can be customized to meet the needs of different customers and projects. Additionally, safety precautions and maintenance are crucial when operating such machinery to ensure worker safety and product quality.

N Deck Profile

The "N Deck Profile" refers to a specific type of metal decking used in construction, particularly for floor and roof systems in buildings. It is characterized by its unique shape, which resembles the letter "N" when viewed in cross-section. N Deck profiles are designed to provide structural support and serve as a base for various construction materials, such as concrete, when constructing floors and roofs in commercial and industrial buildings.

Here are some key features and benefits of N Deck profiles:

  1. Structural Support: N Deck profiles are engineered to offer excellent load-bearing capacity. They can support heavy loads, making them suitable for use in multi-story buildings and industrial structures.
  2. Efficient Design: The N-shaped profile allows for efficient use of materials, reducing the overall weight of the decking while maintaining strength. This can lead to cost savings and more environmentally friendly construction practices.
  3. Span Capability: N Deck profiles are designed to span relatively long distances between support points. This makes them suitable for wide-open spaces without the need for additional support beams or columns.
  4. Fire Resistance: Depending on the material used for N Deck profiles, they can offer good fire resistance, which is essential for building safety.
  5. Corrosion Resistance: Many N Deck profiles are made from galvanized steel or other corrosion-resistant materials, ensuring long-term durability, especially in outdoor or corrosive environments.
  6. Easy Installation: N Deck profiles are typically easy to install, which can save time and labor costs during construction.
  7. Versatility: They can be used for both roof and floor applications, providing flexibility in building design.
  8. Acoustic and Thermal Insulation: Some N Deck profiles can incorporate insulation materials, providing thermal and acoustic insulation properties to improve building comfort and energy efficiency.

It's important to note that the exact specifications of N Deck profiles, such as their dimensions, gauge, material, and load-bearing capacity, can vary between manufacturers and specific product lines. Builders and engineers select the appropriate N Deck profile based on the structural requirements and design specifications of the building project.

N Deck profiles are just one type of metal decking profile used in construction. Other profiles, such as B Deck, F Deck, and composite deck profiles, offer different design features and advantages depending on the project's needs. The choice of decking profile depends on factors like building design, load requirements, budget constraints, and local building codes.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.

For more Machines, browse our extensive range here
