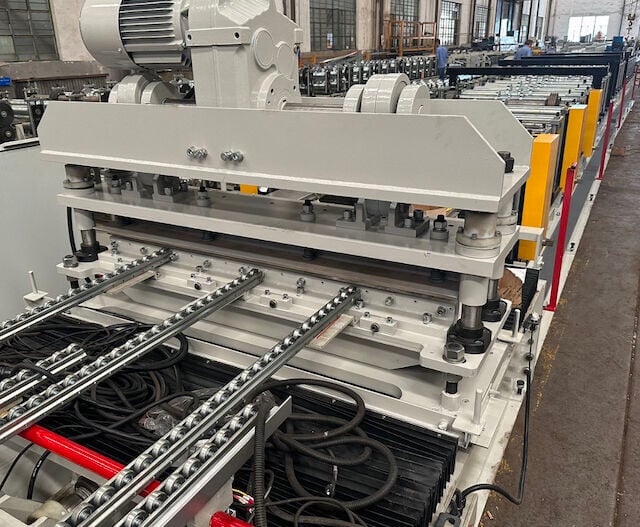

Metal Deck Valley Plate Roll Forming Machine

Here's how a typical Metal Deck Valley Plate Roll Forming Machine works:

Posted on Tuesday, November 21, 2023

A Metal Deck Valley Plate Roll Forming Machine is a specialized piece of equipment used in the construction industry to manufacture metal deck valley plates. These plates are used in the construction of roofs, especially in commercial and industrial buildings, to provide structural support and drainage solutions.

Here's how a typical Metal Deck Valley Plate Roll Forming Machine works:

  1. Material Feeding: The process begins with a roll of metal coil or sheet being fed into the machine. The material is typically steel or another type of metal that is strong and corrosion-resistant.
  2. Roll Forming: The metal sheet passes through a series of rollers and dies that gradually shape it into the desired profile. In the case of a valley plate, the machine is programmed to create a specific shape that allows for effective water drainage and structural support. This shaping process is called roll forming.
  3. Cutting: Once the metal sheet has been formed into the desired shape, the machine has mechanisms for cutting the metal into individual valley plates of the required length. The cutting can be done using shearing blades or other cutting methods.
  4. Stacking and Collecting: The finished valley plates are typically stacked or collected for further processing or transportation. They may be bundled together for shipping to construction sites.
  5. Quality Control: Throughout the manufacturing process, quality control measures are often in place to ensure that the valley plates meet the required specifications and standards. This may include monitoring the dimensions, thickness, and surface finish of the plates.
  6. Optional Features: Some Metal Deck Valley Plate Roll Forming Machines may include additional features, such as embossing or punching holes in the plates for specific applications.

These machines are highly automated and can produce valley plates at a high rate, making them efficient for large-scale construction projects. They are designed to be adjustable to accommodate different material thicknesses and profile shapes, allowing for versatility in production.

In construction, valley plates are installed in the valleys of roofs to direct rainwater and prevent water leakage. They play a crucial role in maintaining the integrity of the building's roof and protecting it from water damage.

Overall, Metal Deck Valley Plate Roll Forming Machines are essential equipment in the construction industry, helping to streamline the manufacturing process of critical roofing components.

Metal Deck Valley Plate Profile

The profile of a Metal Deck Valley Plate can vary depending on the specific design and manufacturer, but it generally features a shape that allows for effective water drainage and structural support in the valleys of a roof. Here's a description of a typical metal deck valley plate profile:

  1. V-Shaped Trough: The primary characteristic of a metal deck valley plate is its V-shaped trough or channel. This trough is designed to capture and direct rainwater and snowmelt away from the intersection point of two roof slopes, known as the valley. The V-shaped design is essential for efficient water drainage, preventing water from pooling on the roof's surface.
  2. Ribbed or Corrugated Surface: Many metal deck valley plates have a ribbed or corrugated surface. These ribs add strength to the plate, enhancing its structural support capabilities. The ribs may also help channel water more effectively and provide a non-slip surface for maintenance personnel working on the roof.
  3. Material Thickness: The thickness of a metal deck valley plate can vary based on the intended application and local building codes. Thicker plates are often used for larger roofs or roofs with heavier loads, while thinner plates may suffice for smaller structures.
  4. Material Type: Metal deck valley plates are typically made of steel or another durable metal that is resistant to corrosion and weathering. Galvanized steel is a common choice because it offers excellent corrosion resistance.
  5. Length and Width: The dimensions of metal deck valley plates can vary, but they are typically manufactured in standard lengths and widths to accommodate various roofing configurations. Custom sizes can also be produced to meet specific project requirements.
  6. Overlapping Sections: To ensure a watertight seal and prevent water from infiltrating the roof, metal deck valley plates are typically installed with overlapping sections. This overlapping design helps guide water down the trough and away from the roof's surface.
  7. Edges and Flanges: Metal deck valley plates may have edges or flanges that aid in installation and provide additional protection against water infiltration. These edges can be bent or shaped as needed during installation to suit the particular roof design.

It's important to note that the exact profile and specifications of metal deck valley plates can vary based on factors such as the roofing system, climate conditions, and local building codes. Roofing professionals and engineers typically select the appropriate valley plate profile and material thickness based on the specific project's requirements and considerations.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.
