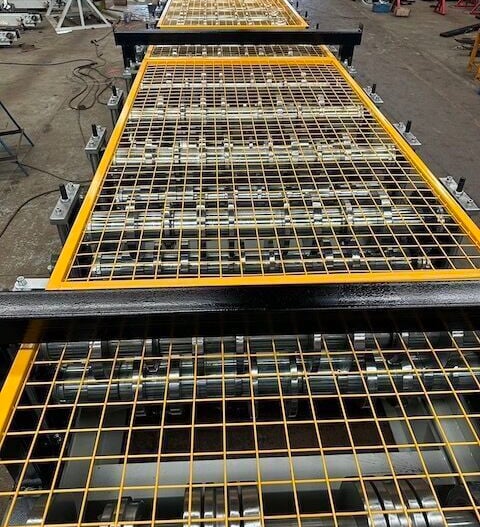

Metal Deck End Closure Roll Forming Machine

A Metal Deck End Closure Roll Forming Machine is a specialized piece of equipment used in the manufacturing and construction industry. It is designed to create metal end closures for metal decking panels, which are commonly used in the construction of floors, roofs, and walls in commercial and industrial buildings. These end closures help seal and finish the ends of the metal decking panels, providing a clean and secure edge.

Here's how a Metal Deck End Closure Roll Forming Machine typically works:

1. Material Feeding: The machine begins by feeding a coil of metal sheet material, usually steel or aluminum, into the system.
2. Roll Forming: The metal sheet passes through a series of rollers and dies that gradually shape it into the desired profile for the end closure. Roll forming is a continuous process where the metal is bent, folded, and formed into the required shape. The rollers and dies are custom-designed to create the specific profile needed for the end closure.
3. Cutting: Once the metal sheet has been roll-formed into the desired shape, the machine cuts it to the appropriate length to match the width of the metal decking panel.
4. Stacking or Collecting: The finished end closures are either stacked for later use or collected for immediate assembly onto the metal decking panels.

These end closures serve several important functions:

• They provide a finished look to the edges of the metal decking panels, improving the overall appearance of the structure.
• They help prevent debris and moisture from entering the gaps between the panels, which can extend the life of the decking and protect the underlying structure.
• They enhance the structural integrity of the decking system by adding reinforcement and support at the ends of the panels.

Overall, a Metal Deck End Closure Roll Forming Machine is a valuable tool in the construction industry, helping to streamline the production of metal decking systems and ensure they meet the necessary quality and performance standards.

Metal Deck End Closure Profile

A Metal Deck End Closure Profile refers to the specific shape or design of the end closure used in metal decking systems. These profiles are typically created using a Metal Deck End Closure Roll Forming Machine, as mentioned in the previous response, and are tailored to the requirements of the decking panels and the overall construction project. The choice of profile can impact the functionality, aesthetics, and performance of the end closure. Here are some common Metal Deck End Closure Profile types:

1. Standard Closure Profile: This is a basic profile that provides a clean and simple finish to the end of the metal decking panel. It often consists of a straight edge or a slight bend to cover the exposed end of the decking.
2. J-Trim Profile: J-trim profiles have a shape that resembles the letter "J." They are designed to cover the cut edge of the metal decking panel and provide a protective lip that helps prevent moisture and debris from entering the gap between panels.
3. L-Trim Profile: L-trim profiles have an "L" shape and offer more substantial coverage than standard closures. They extend vertically along the edge of the decking panel and horizontally over the top surface, providing enhanced protection and reinforcement.
4. Z-Trim Profile: Z-trim profiles have a zigzag or "Z" shape and are often used when additional structural support is required at the end of the decking panels. They offer both protection and increased rigidity.
5. Bullnose Profile: Bullnose profiles have a rounded or curved shape at the end of the decking panel. These profiles are commonly used for safety and aesthetic reasons, as they eliminate sharp edges and provide a smooth, rounded finish.
6. Custom Profiles: In some cases, project-specific requirements or architectural designs may call for custom end closure profiles. These profiles are tailored to meet the unique needs of a particular construction project.

The choice of Metal Deck End Closure Profile depends on factors such as the type of metal decking being used, the intended function of the closure, aesthetic preferences, and structural requirements. The profile selected should provide the necessary protection, finish, and support for the metal decking system while meeting the project's specifications and local building codes.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.
