Aluminum J Channel Roll Forming Machine

Here's how a typical Aluminum J Channel Roll Forming Machine works:

Posted on Monday, November 20, 2023

An Aluminum J Channel Roll Forming Machine is a piece of industrial equipment used in the manufacturing and construction industries to produce J-shaped aluminum channels from flat aluminum coils or sheets. J channels are commonly used in various applications, including trim work, siding, roofing, and more. These machines are specifically designed to efficiently and accurately form aluminum sheets into the desired J-shaped profiles.

Here's how a typical Aluminum J Channel Roll Forming Machine works:

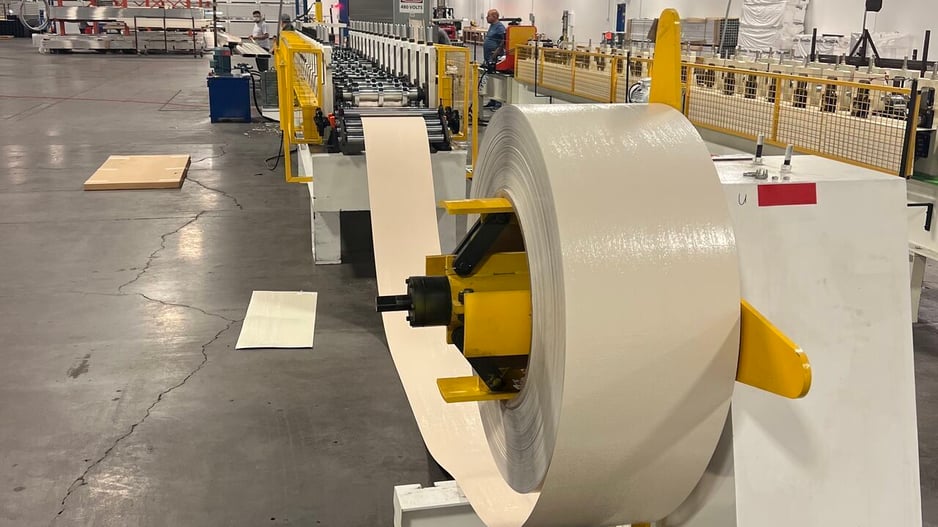

  1. Material Feeding: The process begins with loading a coil or sheet of aluminum onto a decoiler, which feeds the material into the machine.
  2. Straightening: Before forming, the aluminum material may pass through straightening rollers or guides to ensure it is flat and uniform.
  3. Roll Forming: The heart of the machine is a series of rolling dies or forming stations that gradually bend the aluminum sheet into the desired J-shaped profile. Each roll station typically performs a specific bending operation, gradually shaping the channel.
  4. Cutting: After the J channel has been formed to the desired length, a cutting mechanism is employed to trim the finished profile to the required size. This can be done using various methods, including shear cutting or rotary cutting.
  5. Stacking or Collecting: Once cut, the finished J channels are typically collected or stacked for further processing or packaging.

Key features and considerations when using an Aluminum J Channel Roll Forming Machine include:

  • Material Thickness: These machines can handle various aluminum thicknesses, so it's essential to choose the right machine for your specific requirements.
  • Profile Design: The machine can be set up to produce different sizes and designs of J channels by adjusting the roll forming stations and tooling.
  • Speed and Efficiency: The production speed of the machine can be adjusted to meet production demands, ensuring efficient manufacturing.
  • Automation: Some modern machines come equipped with automation features, such as computerized controls and touch-screen interfaces, to make setup and operation easier.
  • Quality Control: Regular maintenance and quality control checks are crucial to ensure that the machine produces accurate and consistent J channels.

Aluminum J Channel Roll Forming Machines are just one type of roll forming equipment used in the metalworking industry. They are valuable for producing aluminum profiles with precise dimensions and high repeatability, making them suitable for a wide range of applications in construction and manufacturing.

J Channel Profiles

J Channel profiles, often simply referred to as J channels, are a common type of metal or plastic profile used in various construction and architectural applications. These profiles are named after their distinctive "J" shape, which resembles the letter "J" when viewed from the side. J channels are designed to provide a secure and finished edge for a variety of materials, including sheet metal, siding, panels, and more. Here are some key features and uses of J channel profiles:

Features of J Channel Profiles:

  1. J-Shaped Design: As the name suggests, J channel profiles have a J-shaped cross-section. They typically consist of a flat base with two perpendicular legs, forming the "J" shape. The legs of the J channel help hold the material in place and provide a clean edge.
  2. Material Compatibility: J channels can be made from various materials, including aluminum, steel, vinyl, or plastic, depending on the application's requirements. The choice of material depends on factors like durability, weather resistance, and appearance.
  3. Versatile Applications: J channel profiles have a wide range of applications, including:
    • Siding: J channels are commonly used in siding installations to provide a finished edge where siding panels meet windows, doors, or corners.
    • Roofing: They are used in roofing projects to secure and protect the edges of roofing materials, such as metal panels or shingles.
    • Trim Work: J channels are used as trim pieces to cover exposed edges of various materials, such as plywood, particleboard, or drywall.
    • Cabinet Making: They can be used in cabinetry to provide a neat edge to the back panel of cabinets or shelves.
  4. Color and Finish Options: J channel profiles are often available in a variety of colors and finishes to match the aesthetics of the surrounding materials. For example, vinyl J channels can come in different colors to match vinyl siding.
  5. Easy Installation: Installing J channel profiles is typically straightforward. They can be fastened to the underlying surface using screws, nails, or other suitable fasteners. Some profiles may have pre-drilled holes for easier installation.
  6. Protective Function: J channels not only provide a finished appearance but also serve to protect the edges of materials from moisture, debris, and other potential damage.

In summary, J channel profiles are versatile and commonly used in construction and remodeling projects to provide a neat and finished edge to various materials. Their "J" shape allows them to securely hold the materials in place while enhancing the overall appearance of the installation. These profiles are available in different materials, sizes, and finishes, making them suitable for a wide range of applications.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.

For more Machines, browse our extensive range here
