Aluminum Corner Trim Roll Forming Machine

An Aluminum Corner Trim Roll Forming Machine is a piece of industrial equipment used in the manufacturing process to create aluminum corner trim pieces. These machines are commonly used in the construction and building industry, where aluminum corner trim is often used to provide a clean and finished look to the corners of walls and ceilings.

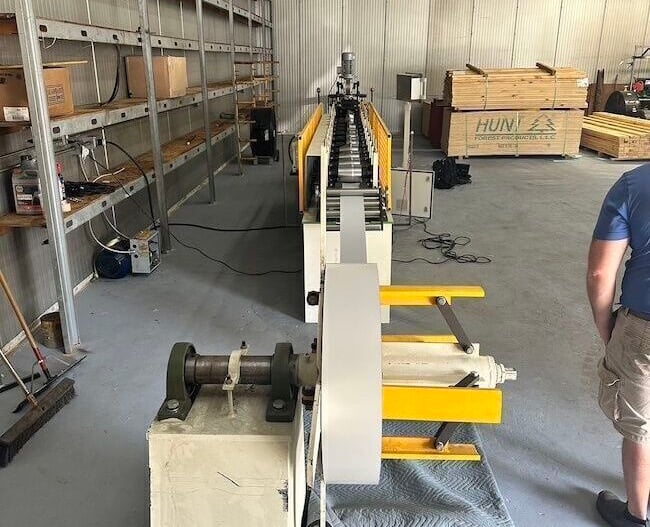

Here's how a typical Aluminum Corner Trim Roll Forming Machine works:

1. Material Loading: Aluminum coil or sheet is loaded onto the machine. The material is typically fed from a coil, which is then unwound and passed through the machine.
2. Roll Forming: The machine uses a series of rollers and dies to shape the aluminum material into the desired profile. In the case of aluminum corner trim, this profile will have a shape that fits neatly over the corners of walls or ceilings.
3. Cutting: Once the aluminum material has been formed into the desired profile, it is cut to the appropriate length. The cutting mechanism may be integrated into the roll forming machine itself.
4. Folding or Bending: Some corner trim profiles may require additional bending or folding to achieve the desired shape. This step is often performed on the same machine, using additional rollers or press brakes.
5. Output: The finished aluminum corner trim pieces are then collected or stacked for further processing or packaging.

Aluminum Corner Trim Roll Forming Machines are typically highly automated and can produce a large number of corner trim pieces quickly and efficiently. They can be customized to produce different profiles and sizes of corner trim to meet the specific requirements of a construction project. These machines are valued for their precision and repeatability, which ensures consistent quality in the produced trim pieces.

It's important to note that the exact specifications and features of an Aluminum Corner Trim Roll Forming Machine can vary depending on the manufacturer and the specific needs of the customer. These machines can be a valuable asset for companies involved in aluminum corner trim production or in construction projects where such trim is used extensively.

Aluminum Corner Trim Profile

Aluminum corner trim profiles are extruded or roll-formed aluminum shapes designed for use in construction and building applications to provide a finished and protective edge or corner on walls, ceilings, and other surfaces. These profiles are used to enhance the appearance of corners and edges, protect them from damage, and cover any exposed edges of materials such as drywall, plaster, or tiles. Aluminum is chosen for these profiles due to its lightweight, corrosion-resistant properties, and ease of fabrication.

Common features of aluminum corner trim profiles may include:

1. Shape: Aluminum corner trim profiles come in various shapes, but they typically have a "L" or "J" shape to fit over the corners. The choice of shape depends on the specific application and aesthetic preferences.
2. Finish: They can have different finishes, such as anodized, mill finish, or powder-coated, to match the desired look and color scheme of the building or project.
3. Size: The size of aluminum corner trim profiles can vary, with different widths and depths to accommodate different corner dimensions and design preferences.
4. Thickness: The thickness of the aluminum may vary depending on the level of durability and protection required. Thicker profiles offer more robust protection.
5. Installation: Many aluminum corner trim profiles have features that facilitate installation, such as pre-punched holes for screws or nails, adhesive backing, or other attachment methods.
6. Variations: Some corner trim profiles have special features like rounded edges or decorative patterns to add a unique touch to the building's aesthetics.

Aluminum corner trim profiles are widely used in both residential and commercial construction for various purposes:

• Interior: They are used to protect and finish the corners of walls, particularly where drywall or other wall coverings meet. They help prevent damage and wear to the corners over time.
• Exterior: These profiles can also be used on the exterior of buildings, especially in applications like stucco or siding installations, to provide a clean and finished look to the corners and edges.
• Tile and Flooring: In tile and flooring applications, aluminum corner trim profiles protect the edges of tiles or floor coverings, enhance the appearance, and prevent chipping or cracking.
• Furniture: Aluminum corner trim profiles can also be used in furniture manufacturing to add a decorative and protective element to the corners of tables, cabinets, and other items.

Aluminum corner trim profiles come in a wide range of styles and sizes to suit various design preferences and functional requirements. They are a versatile and durable solution for achieving a polished and protected look in construction and design projects.
