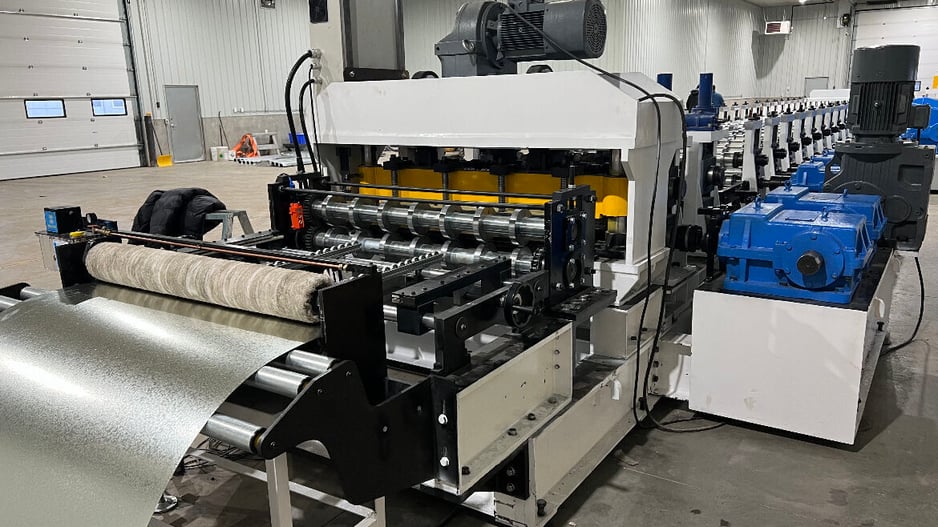

6.0” Metal Deep Roof Deck Roll Forming Machine

A 6.0" Metal Deep Roof Deck Roll Forming Machine is a piece of equipment used in the construction and manufacturing industry to produce metal roof decking panels with a depth of 6.0 inches. Here's a breakdown of the key components and functions of such a machine:

1. Material Feeding System: This is where the raw metal coil or sheet is loaded onto the machine. The material is typically steel, aluminum, or another metal alloy used for roof decking.
2. Uncoiler: The uncoiler is responsible for unwinding the metal coil and feeding it into the roll forming machine at a controlled rate.
3. Roll Forming Stations: The heart of the machine consists of a series of roll forming stations. These stations are equipped with rollers and dies that gradually shape the metal sheet into the desired profile. In this case, the profile would be a 6.0" deep roof decking panel.
4. Cutting Mechanism: After the metal sheet has been roll-formed into the required shape, a cutting mechanism is used to trim the panel to the desired length. This ensures that each panel is uniform and ready for installation.
5. Control System: Modern roll forming machines are equipped with computerized control systems that allow operators to set parameters such as the length of the panels, the speed of the machine, and other important variables. This ensures precision in production.
6. Stacking or Discharge System: Once the panels are cut to the desired length, they are typically stacked or conveyed to a designated area for storage or further processing.

These machines are commonly used in the construction industry to produce metal roof decking panels used in commercial and industrial buildings. Roof decking serves as a structural component of the roof system and provides support for roofing materials, insulation, and other components.

It's worth noting that the specifications of a roll forming machine can vary, so the "6.0" Metal Deep Roof Deck Roll Forming Machine" specifically refers to a machine designed to produce roof decking panels with a depth of 6.0 inches. The actual dimensions and features of the machine may vary depending on the manufacturer and the specific requirements of the customer.

6.0” Metal Deep Roof Deck Profile

A "6.0” Metal Deep Roof Deck Profile" refers to a specific type of metal roofing or decking panel with a depth of 6.0 inches. Roof deck profiles are commonly used in commercial and industrial construction as a structural component of the roof system. These profiles provide support for roofing materials, insulation, and other components, while also contributing to the overall strength and stability of the roof.

Here are some key characteristics and considerations related to a 6.0" metal deep roof deck profile:

1. Depth: The "6.0 inches" in the description indicates the depth of the profile. This measurement represents how far the profile extends from the top surface to the bottom surface of the decking panel. A deeper profile can provide greater load-bearing capacity and may be suitable for larger spans and heavier roofing materials.
2. Material: Roof deck profiles are typically made from various metals, such as steel or aluminum. The choice of material depends on factors like structural requirements, budget, and environmental conditions.
3. Usage: Roof deck profiles are designed to serve as a structural substrate for roofing systems. They create a stable platform for the attachment of roofing materials like single-ply membranes, built-up roofing, or metal roofing panels. The depth of the profile can impact the overall strength and load-bearing capacity of the roof.
4. Installation: Proper installation of roof deck profiles is crucial to ensure the integrity of the roof system. These panels are typically installed with proper fasteners and should be aligned and secured according to manufacturer specifications and local building codes.
5. Insulation: Roof deck profiles are often used in conjunction with insulation materials to improve energy efficiency and thermal performance. Insulation is placed between the roof deck and the roofing material to regulate temperature and reduce heat loss or gain.
6. Waterproofing: Depending on the specific roofing system used, additional waterproofing layers may be applied over the roof deck profile to prevent water infiltration and protect the building interior from moisture damage.
7. Load-Bearing Capacity: The depth and design of the profile will determine its load-bearing capacity, which is essential for supporting the weight of the roof and any equipment or materials placed on it.

It's important to note that there are various roof deck profiles available in the market, each with its own design and load-bearing capabilities. The choice of the profile should align with the structural requirements of the building and the specifications of the roofing system being installed. Additionally, local building codes and regulations should be followed during the design and installation of roof deck profiles to ensure safety and compliance.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.
