2.0” Metal Composite Floor Deck Roll Forming Machine

2.0" Metal Composite Floor Deck Roll Forming Machine is a specialized piece of equipment used in the construction industry

Posted on Thursday, November 23, 2023

A 2.0" Metal Composite Floor Deck Roll Forming Machine is a specialized piece of equipment used in the construction industry to manufacture metal composite floor deck panels. These panels are commonly used in the construction of buildings and structures to create durable and strong flooring systems. Here's a breakdown of the key components and functions of such a machine:

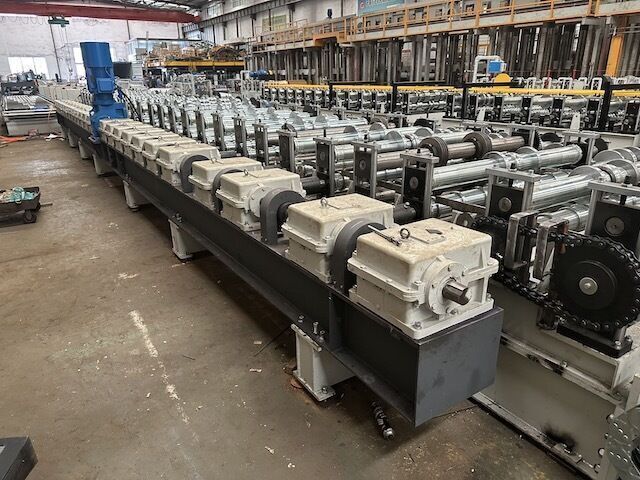

  1. Roll Forming Machine: The core of the equipment is the roll forming machine itself. This machine is designed to take a coil of metal sheet, typically steel, and gradually shape it into the desired profile for the composite floor deck panels. In this case, it's designed to produce panels with a 2.0-inch profile.
  2. Coil Decoiler: This is where the coil of metal sheet is loaded onto the machine. The coil decoiler feeds the metal sheet into the roll forming machine at a consistent rate, ensuring a continuous production process.
  3. Rolling Tooling: The roll forming machine is equipped with a series of rollers and tooling that gradually shape the flat metal sheet into the desired floor deck profile. The tooling is specifically designed for 2.0-inch composite floor deck panels.
  4. Cutting Mechanism: Once the desired length of the floor deck panel is formed, a cutting mechanism is used to trim the panel to the required size. This ensures that the panels are uniform and of the correct length for construction.
  5. Control System: Modern roll forming machines are typically equipped with computerized control systems. These systems allow operators to set parameters such as the length of the panels, the number of panels to be produced, and other variables. They also monitor the machine's performance and can stop it in case of issues.
  6. Safety Features: Roll forming machines must have various safety features to protect operators and maintain a safe working environment. These features may include emergency stop buttons, safety guards, and sensors to detect any anomalies in the production process.
  7. Material Handling: There may be conveyors or material handling systems integrated with the machine to transport finished panels to a collection area or further processing.

The specific design and features of a 2.0" Metal Composite Floor Deck Roll Forming Machine can vary depending on the manufacturer and the requirements of the user. These machines are used in the construction industry to produce floor decking materials that are strong, durable, and capable of supporting the weight and load requirements of buildings and structures. They are a crucial part of the construction process for creating safe and reliable flooring systems.

2.0” Metal Composite Floor Deck Profile

A 2.0" Metal Composite Floor Deck Profile refers to the specific design and dimensions of a type of floor decking material commonly used in the construction industry. Let's break down what this term means:

  1. Metal Composite: The term "metal composite" indicates that the floor deck profile is made from a combination of metal materials. Typically, steel is the primary material used in metal composite floor decks due to its strength and durability. These decks are often composed of multiple layers or components, such as a steel sheet or plate bonded to a concrete or insulating material. The composite design enhances the load-bearing capacity and insulation properties of the floor deck.
  2. 2.0" Thickness: The "2.0" in "2.0" Metal Composite Floor Deck Profile" refers to the thickness of the floor deck. In this context, it means that the profile has a thickness of 2.0 inches (or approximately 50.8 millimeters). The thickness of a floor deck is a critical parameter because it determines the deck's load-bearing capacity, stiffness, and suitability for specific construction applications.
  3. Floor Deck Profile: The "floor deck profile" describes the cross-sectional shape and design of the decking material. Floor deck profiles can vary widely in terms of their geometry, and they are designed to serve specific purposes in construction. A typical floor deck profile consists of ribs or corrugations that provide structural strength and stiffness while allowing for the attachment of concrete, flooring materials, or other finishes.

In summary, a 2.0" Metal Composite Floor Deck Profile is a type of construction material used as flooring in buildings and structures. It is composed of multiple layers, often including steel, and has a thickness of 2.0 inches. The specific design of the profile, including its shape and ribbing, is engineered to meet structural requirements and provide a stable and durable flooring surface in construction projects.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.
