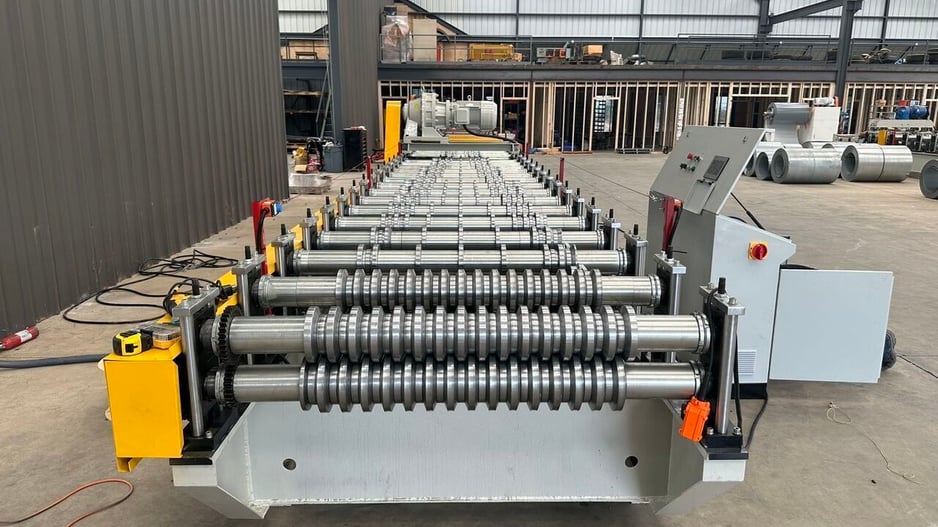

1.0” Metal Form Deck Machine

1.0” Metal Form Deck Roll Forming Machine Description

A "1.0" Metal Form Deck Roll Forming Machine" is a specific type of machinery used in the construction industry to produce metal form decks, which are commonly used as a component in the construction of buildings, especially in structural flooring systems. Here's a breakdown of the key components and functions of such a machine:

1. Roll Forming Machine: The core of this equipment is the roll forming machine itself. It consists of a series of rollers and dies that shape a continuous strip of metal into the desired profile. In this case, the machine is designed to create metal form decks with a specific "1.0" profile.
2. Metal Coil Feeding System: A roll forming machine typically requires a continuous supply of metal coil. The machine is equipped with a feeding system that unrolls the metal coil and feeds it into the roll forming section.
3. Roller Stations: Inside the roll forming machine, there are multiple roller stations, each with a set of rollers and dies. These stations progressively shape the metal into the desired form. The number of roller stations may vary depending on the complexity of the profile.
4. Cutting Mechanism: Once the metal strip has been formed into the desired shape, a cutting mechanism is used to cut the formed metal deck into specific lengths, typically according to the requirements of the construction project.
5. Control System: Modern roll forming machines are equipped with a control system that allows operators to set parameters such as the speed of the machine, the length of the metal deck to be cut, and other variables to ensure consistent production.
6. Material Handling System: After the metal form decks are cut to the desired lengths, a material handling system may be incorporated to stack, bundle, or transport the finished products for storage or further processing.

The "1.0" in the machine's name likely refers to the specific profile or thickness of the metal form deck it produces. Metal form decks come in various sizes and profiles, and the choice of a particular machine depends on the project's requirements.

These roll forming machines are crucial in the construction industry, as metal form decks are commonly used to create composite floor systems that provide strength and stability to buildings, especially in multi-story structures. The roll forming process allows for efficient and precise manufacturing of these components, contributing to the speed and quality of construction projects.

1.0” Metal Form Deck Profile

The "1.0" Metal Form Deck Profile likely refers to a specific type of metal form deck used in construction. In construction, metal form decks are commonly used as a component in composite floor systems to provide support and stability to concrete slabs. The "1.0" in the profile name typically indicates the thickness of the metal used in the form deck, which is 1.0 inch.

Here are some key characteristics and features of a "1.0" Metal Form Deck Profile:

1. Thickness: As mentioned, the profile has a thickness of 1.0 inch. This thickness can vary depending on the specific requirements of a construction project. Thicker profiles may be used for projects requiring higher load-bearing capacity.
2. Profile Shape: Metal form decks come in various profile shapes, and the choice of profile can impact the structural performance of the composite floor system. The specific profile shape for the "1.0" Metal Form Deck Profile would depend on the manufacturer and the project's needs.
3. Material: Metal form decks are typically made from galvanized steel or other corrosion-resistant materials to ensure durability and longevity in construction applications.
4. Ribbing and Embossment: Metal form decks often feature ribbing, embossment, or other surface patterns that enhance the bond between the concrete slab and the metal deck. This improves the overall structural performance of the composite floor system.
5. Size and Length: Metal form decks come in various sizes and lengths to accommodate different construction requirements. The dimensions of the "1.0" Metal Form Deck Profile would depend on the manufacturer and project specifications.
6. Installation: Metal form decks are designed to be easily installed on steel or concrete structural supports. They provide a stable platform for pouring concrete, creating a composite floor system that offers strength and durability.
7. Application: Metal form decks are commonly used in commercial and industrial construction for multi-story buildings. They contribute to the overall structural integrity of the building and help distribute loads effectively.

It's important to note that the specific details of the "1.0" Metal Form Deck Profile, such as its exact dimensions, ribbing pattern, and manufacturer, may vary depending on the supplier and the region. Builders and engineers typically select the appropriate form deck profile based on the structural requirements of their construction project, considering factors such as load-bearing capacity, span, and intended use.

All our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here.
