AG Roof Panel

Here are some key characteristics and features of the AG Panel metal roof profile:

Posted on Monday, October 2, 2023

AG Panel Metal Roof

The AG Panel is a popular metal roof profile used in various construction applications, particularly in agricultural and industrial buildings. It is known for its durability, cost-effectiveness, and versatility. The "AG" in AG Panel typically stands for "Agricultural," but it has found use in many other contexts as well due to its practical design.

Here are some key characteristics and features of the AG Panel metal roof profile:

  1. Corrugated Design: The AG Panel features a corrugated or ribbed design, with a series of continuous, closely spaced waves or ribs running along the length of the panel. This design enhances the panel's strength and rigidity while also providing effective water drainage.
  2. Material Options: AG Panels are commonly made from galvanized steel, which offers excellent corrosion resistance. They may also be available in other materials like aluminum or coated steel for added durability and longevity.
  3. Versatility: AG Panels are versatile and can be used in a wide range of applications, including agricultural buildings (such as barns and storage sheds), industrial facilities, commercial structures, and residential roofing.

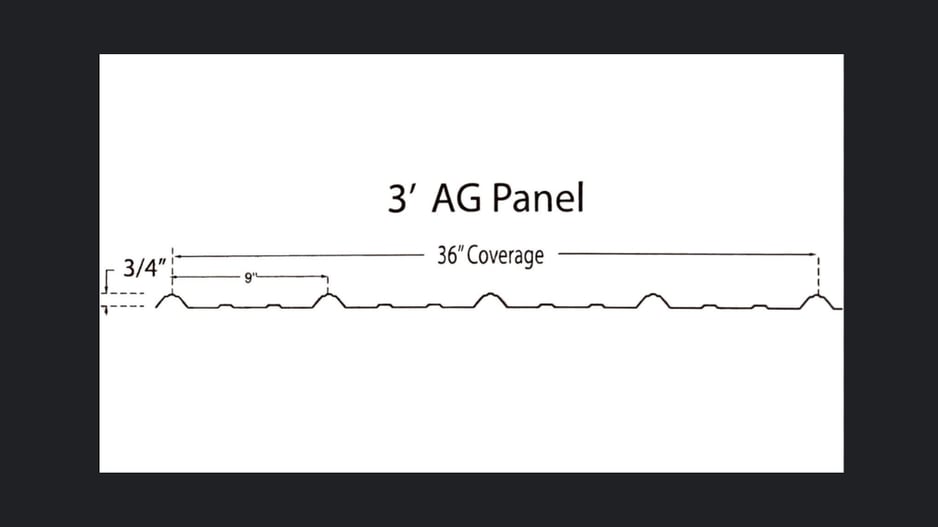

  4. Length and Width Variations: AG Panels come in various lengths and widths to accommodate different roofing and siding needs. The standard width of an AG Panel is typically around 36 inches.
  5. Ease of Installation: AG Panels are relatively easy to install due to their design. They often have overlapping ribs or seams that provide a secure fit, helping to prevent leaks and ensuring a watertight seal when properly installed.
  6. Weather Resistance: The corrugated design of AG Panels helps channel rainwater and snowmelt away from the roof's surface, reducing the risk of water infiltration and minimizing the weight on the roof.
  7. Cost-Effective: AG Panels are known for their cost-effectiveness, making them a popular choice for budget-conscious construction projects.
  8. Color Options: These panels are often available in a variety of colors and finishes, allowing for customization to match the aesthetics of the building.
  9. Longevity: When properly maintained, AG Panel roofs can have a long service life, providing decades of protection and insulation.

Overall, the AG Panel metal roof profile is valued for its practicality, durability, and cost-effectiveness. It is suitable for a range of applications and can be a reliable choice for roofing and siding needs in various construction projects. When considering the use of AG Panels, it's essential to consult with manufacturers or suppliers to determine the specific options available, such as material choices, colors, and profile variations, to best meet your project requirements.
