3" N Deck Roll Forming Machine in Orlando, USA

Type N Deck Metal Roof Deck Machine

Posted on Monday, October 23, 2023

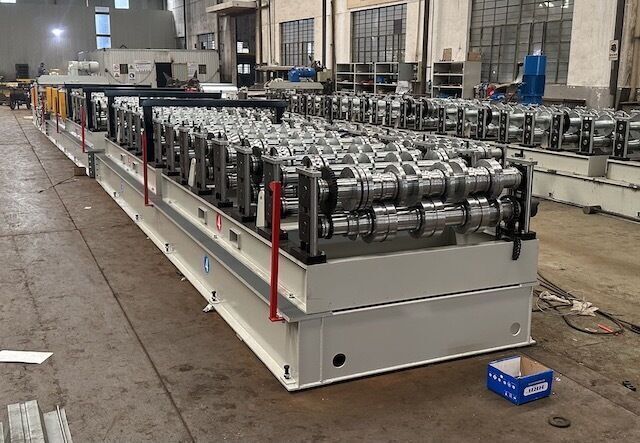

Understanding the 3" N Deck Roll Forming Machine

The 3" N Deck Roll Forming Machine is a specific equipment designed to produce the "N Deck" profile in metal sheets. This profile is often used in construction, especially for roofing applications. The "N Deck" refers to a type of corrugated metal deck that has a distinct shape and characteristics, differentiating it from other metal deck profiles.

How the Machine Functions

To produce the type n metal deck profile, a flat coil of metal is fed into the machine. As the metal progresses through the machine, it is shaped by a series of rollers. Each roller bends the metal a little more than the previous one, until the final "N Deck" shape is achieved. This process transforms the flat metal into the n deck metal deck profile used in various construction projects.

Key Features of the 3" N Deck Roll Forming Machine:

  1. Dimensions: The machine has a footprint of 120ft x 15ft, requiring substantial space for installation.
  2. Uncoiling Capacity: Equipped with a 20,000lb Uncoiler to handle heavy metal coils.
  3. Metal Thickness: Designed to work with metal sheets ranging from 16g to 22g in thickness.
  4. Power Requirements: Operates on a 480v - 3ph - 60Hz electrical connection.
  5. Mechanism: Uses a gear box drive for efficient operation, and houses 28 stands for shaping the metal. It also features a pre-flying shear for precision cutting.
  6. Coil Specifications: Accommodates a coil width of 48" +/-.

Applications of the Machine’s Profile

The profile produced by this machine, the metal deck n deck roof, is predominantly used in roofing applications in the construction industry. Its unique design provides both strength and support, making it ideal for large commercial and industrial buildings. The "N Deck" profile offers a stable platform, ensuring safety and durability when installed.

Practicalities and Benefits

For businesses in the construction industry, the 3" N Deck Roll Forming Machine is a valuable asset. By enabling in-house production of the n deck metal deck, businesses can achieve better control over the quality and quantity of the output. This means timely delivery of materials for projects and potential cost savings. The machine's ability to handle varying metal thicknesses ensures versatility in production. With its pre-flying shear, precision in cutting is guaranteed, minimizing wastage. Overall, the machine offers efficiency, customization, and a return on investment for consumers, making it a practical choice for those producing large quantities of the "N Deck" profile.

Are you looking at a 3" N Deck Roll Forming Machine?

All Our machines are all due to variations in the customer's demand, and we are always ready to assist with any issues. All machines are assembled by our expert team in Orlando, Florida. We have been leading the Roll Forming Machine market since 2009, and have great expertise, so you will be in safe hands. For further information, contact our team here. For more Machines, browse our extensive range here
