Posted on Tuesday, May 9, 2023

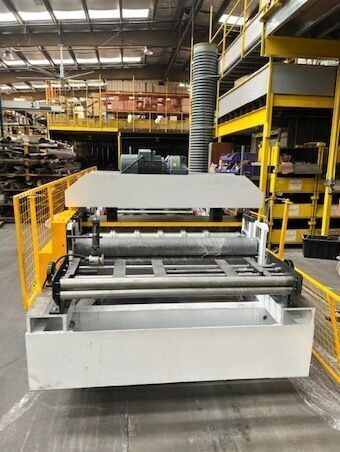

Proper entry guide setup is vital to ensure that the material is appropriately aligned and fed into the roll-forming machine, resulting in consistent and accurate forming.
Here are the steps to set up an entry guide for a roll-forming machine:
Determine the material specifications.
You should know the width, thickness, and type of material you will be running on the roll-forming machine. This information will help you determine the proper entry guide dimensions and positioning.
Position the entry guide.
The entry guide should be positioned as close to the first set of rollers as possible. This will ensure that the material is properly guided into the rollers and that there is minimal deflection or deviation.
Adjust the entry guide height.
The entry guide should be adjusted to the proper height based on the thickness of the material. This will ensure that the material is aligned correctly and that there is enough clearance between the guide and the material.
Adjust the entry guide width.
The operator should adjust the entry guide to the proper width based on the material width. Doing so will ensure that the material is precisely guided and there is enough clearance between the guide and the material.
Check for proper alignment.
Once the entry guide is positioned and adjusted for height and width, check for correct alignment by running a test piece through the machine. The operator should guide the material into the rollers with no deviation or deflection.
Make necessary adjustments
If there are any alignment issues or deviations, make necessary adjustments to the entry guide. Getting the entry guide correctly set up may take some trial and error, but it is essential to ensure consistent and accurate roll forming.
Regularly check and maintain the entry guide.
The entry guide should be checked and maintained regularly to ensure it is correctly aligned and functioning. Doing so will help to prevent material damage and machine downtime.
Proper entry guide setup is essential to ensuring accurate and consistent roll forming. Working with an experienced technician can help ensure that the entry guide is appropriately set up and maintained for optimal performance. In doing so, you can ensure:
Improved material alignment
The entry guide helps to align the material as it enters the roll-forming machine, which ensures that the material is fed into the rollers consistently and accurately. This helps minimize material deflection and deviation, resulting in better quality and more precise roll-formed products.
Increased production speed
With a correctly set up entry guide, the material can be fed into the roll-forming machine faster, increasing production rates and output.
Reduced material waste
An entry guide helps to reduce material waste by ensuring that the material enters the roll-forming machine as it should. This helps to minimize material damage and scrap, which can result in cost savings for the manufacturer.
If the entry guide works, it will help prevent material jams and other issues that can cause machine downtime and potentially unsafe conditions. This can help to improve workplace safety for employees working with the roll-forming machine.
Longer machine life
An entry guide can help extend the life of the roll-forming machine by reducing wear and tear caused by misaligned or improperly fed material.
Overall, an entry guide is a critical component of a roll-forming machine, and it can offer several benefits to the roll-forming process. Paying attention to the right set-up process will improve the accuracy, efficiency, and safety of the roll-forming process, which can result in better quality products and cost savings for the manufacturer.
Are you considering investing in a roll-forming machine?
If you are looking for a top-quality roll-forming machine to help improve the quality of your business offering, increase efficiency, and achieve a higher ROI, why not browse the reliable machines from Roll Forming LLC? If you need any assistance or have any questions, get in touch - a team member would be happy to hear from you.
